SA317
THREE-TERMINAL ADJUSTABLE OUTPUT POSITIVE VOLTAGE REGULATOR

SA317 is an adjustable three-terminal positive voltage regulator, providing a maximum current exceeding 1.5A when the output voltage range is 1.25V to 37V. This voltage regulator is exceptionally easy to use, and only two external resistors are needed to set the output voltage. In addition, internal current limiting, thermal shutdown and safe working area compensation are used to basically prevent the fuse from blowing.

Main feature

  • Output adjustable voltage low to 1.25V

  • Maximum output current: 1.5A (TO-220-3L, TO-263-3L)

  • Maximum output current: 0.5A (SOT-223-3L)

  • Internal short circuit protection

  • Over current/over thermal protection

  • Transistor safe working area protection

  • Standard three-terminal transistor package


Ordering Information
Product Name Package form Marking Hazardous Substance Control Packing Type Remarks

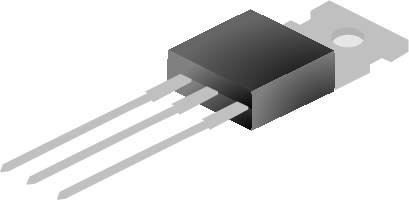

SA317T TO-220-3L SA317T Halogen free Tube
SA317S TO-263-3L SA317S Halogen free Tube
SA317STR TO-263-3L SA317S Halogen free Tape & Reel
SA317H SOT-223-3L SA317H Halogen free Tube
SA317HTR SOT-223-3L SA317H Halogen free Tape & Reel

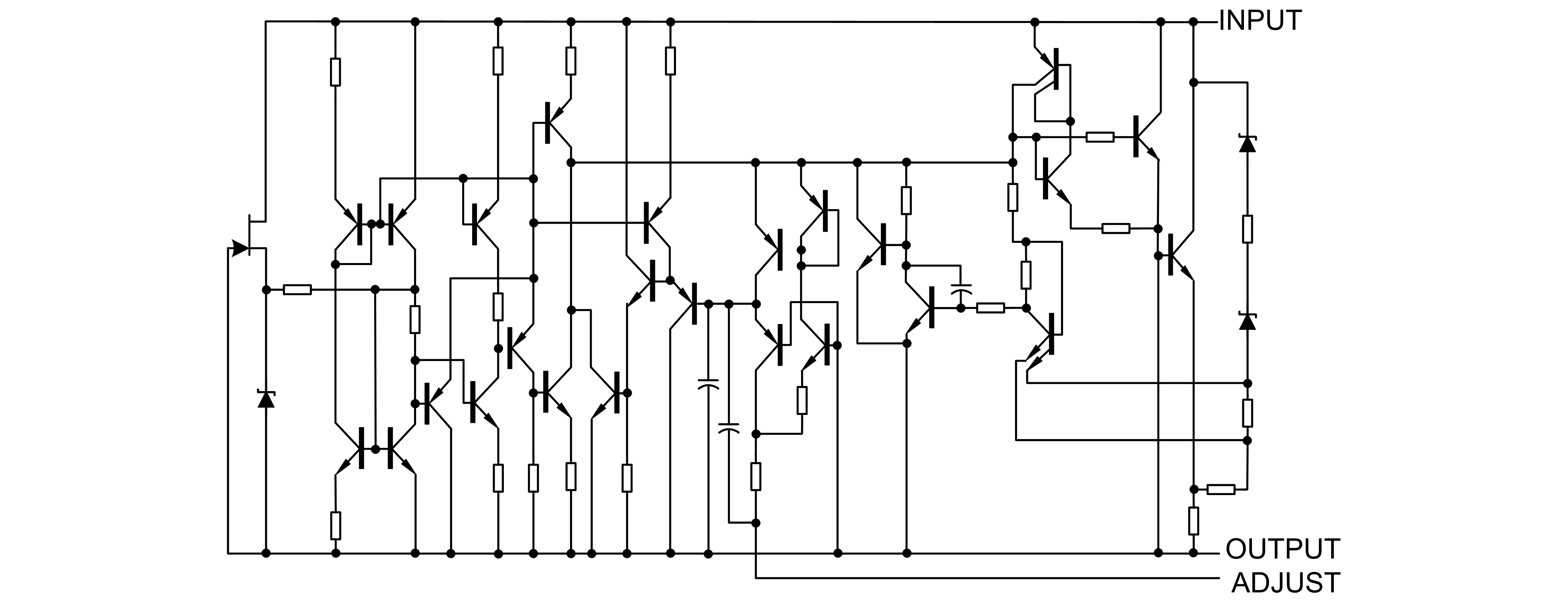

Block Diagram
